XIL 193s NEW 2025

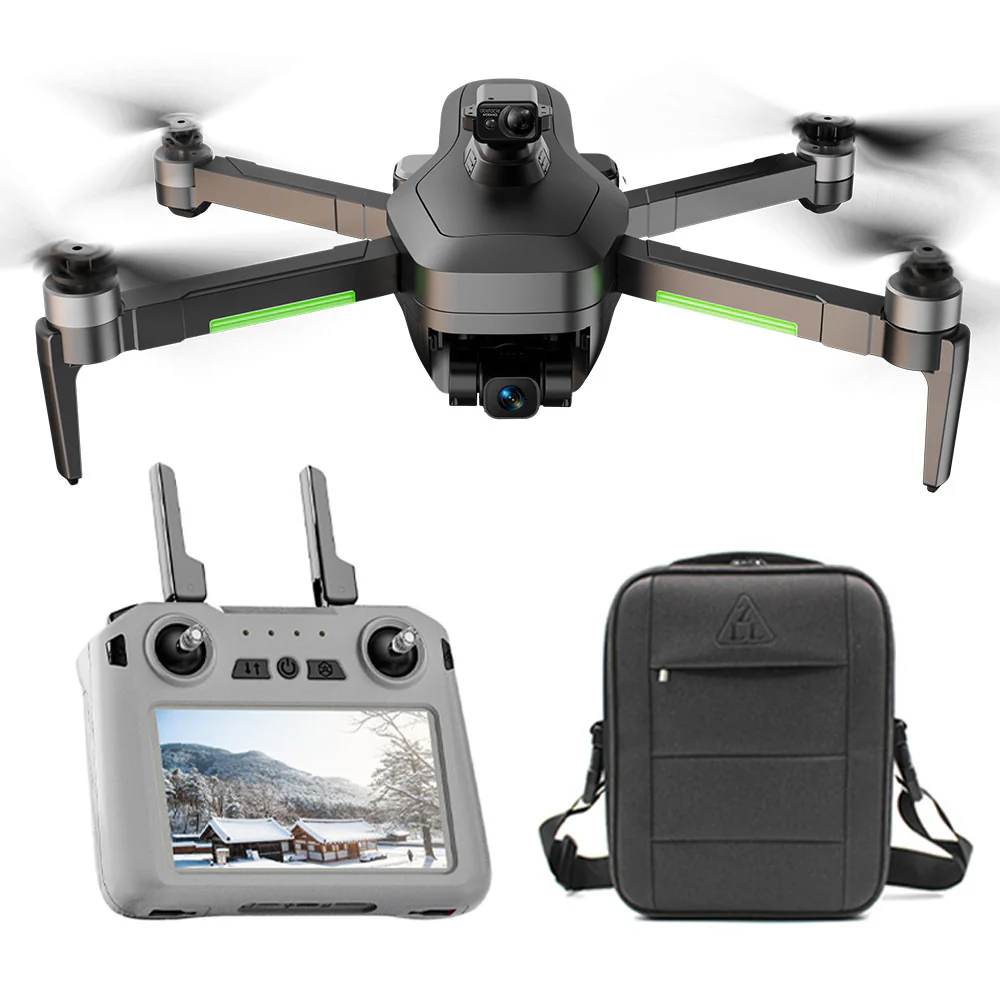

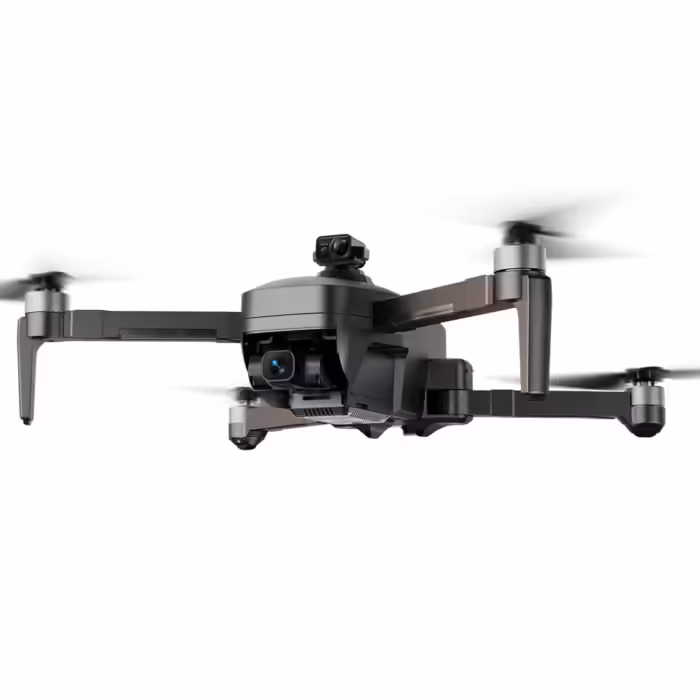

XIL 193S MAX 4K Drone 3-Axis Gimbal EIS Camera Laser Obstacle Avoidance 5G GPS Quadcopter with Touch Screen Remote Control

XIL 193S English User Manual

PRODUCT PARAMETERS:
Product color: Gray
Laser obstacle avoidance: Support
Obstacle Avoidance Detection Direction: Front, back, left, right, up
Obstacle avoidance detection range: 15-20 M
Motor type: 11806 Brushless Motor
GPS intelligent positioning return: Support
Optical flow fixed point: Support
Pressure sensor: Support
Image transmission method: The remote control has a built-in screen
Control distance(Free interference and no occlusion): 3000 meters
Wifi image transmission distance: (Free interference and no occlusion): 3000 meters
Battery capacity of remote control: 3.7V/5200mAh
Charging time of remote control: About 7 hours
The duration of the remote control: About 12 hours
Intelligent lithium battery capacity of drone: 7.6V/3400mAh
Lithium-ion battery time of flight【No load】: About 25-26 minutes
Charging time of lithium battery for drone: About 360 minutes
USB Charging (5V 2A): Support
Product size: 18x9x8 CM
Body size/after deployment: 32x40x8 CM
Weight of the fuselage: 550g
Size of outer case: 47.5*31.5*50 CM
Color box specifications: 30*11.5*24 CM

AERIAL CAMERA CONFIGURATION PARAMETERS:
Self-stabilized electronic anti-shake lens: Support
Head angle, vertical (adjust angle range) : 110°
Head angle, lateral (adjust angle range) : 65°
Head angle, lateral (adjust angle range) : 45°
 Zoom: Support
The camera adjusts the angle: 110 ° electric adjustment
Photographs: 4096*3072P
Video: 2048*1080
Frame rate: 25 fps
GPS module: Support
Tap flight: Support
Fixed point surround: Support
Hand gesture shooting/video reconization: Support
MV: filters, video effects, adding background music, picture/video sharing: Support
